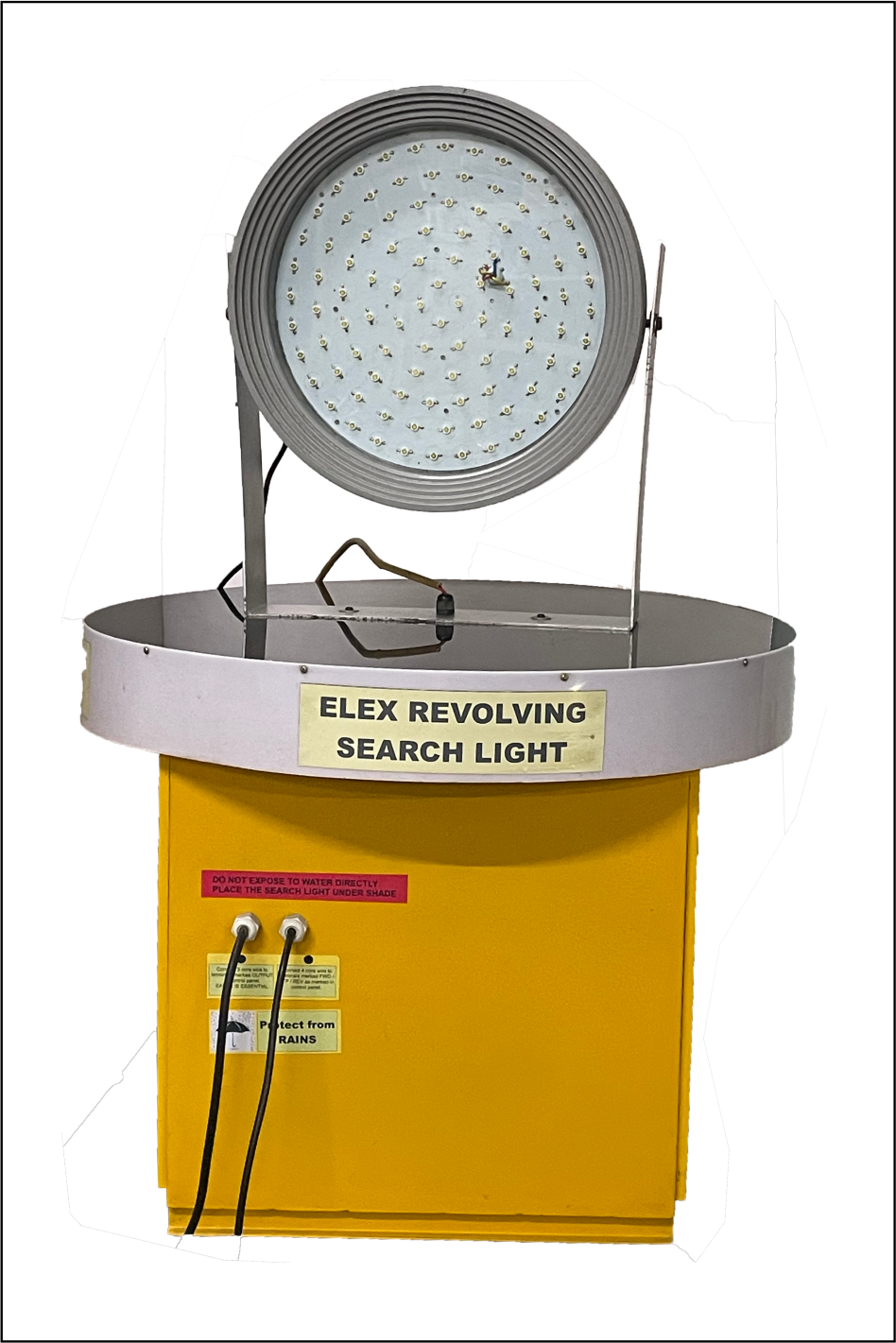

Revolving LED Search Light
LED 100/200 watt
Salient Features
Revolving Search Light 360° revolution
Sheet metal housing in a mild steel 2 mm thick sheet
Base unit dimensions -24 x 24 x 24 inch
Epoxy-coated paint to withstand external weather conditions
Permanent Magnetic Motor
Revolving mechanism on a double ball bearing
Counterbalance the revolving mechanism at 180° to provide ripple-free movement
Double revolving disk
Works on a 12V DC supply, on double sliprings with copper, graphite, and carbon.
The revolving Search Light is water-resistant, but direct splashing of water during rain is avoided.
Search light - available in 100-watt & 200-watt LED LIGHT, White or Yellow colour
A separate Control panel is provided to control light movement from inside the cabin.
The control panel is equipped with a 2-pole MCB / fuse, a Digital Panel Meter, and a switch to stop revolving light & change direction from clockwise to anticlockwise or vice-versa.
