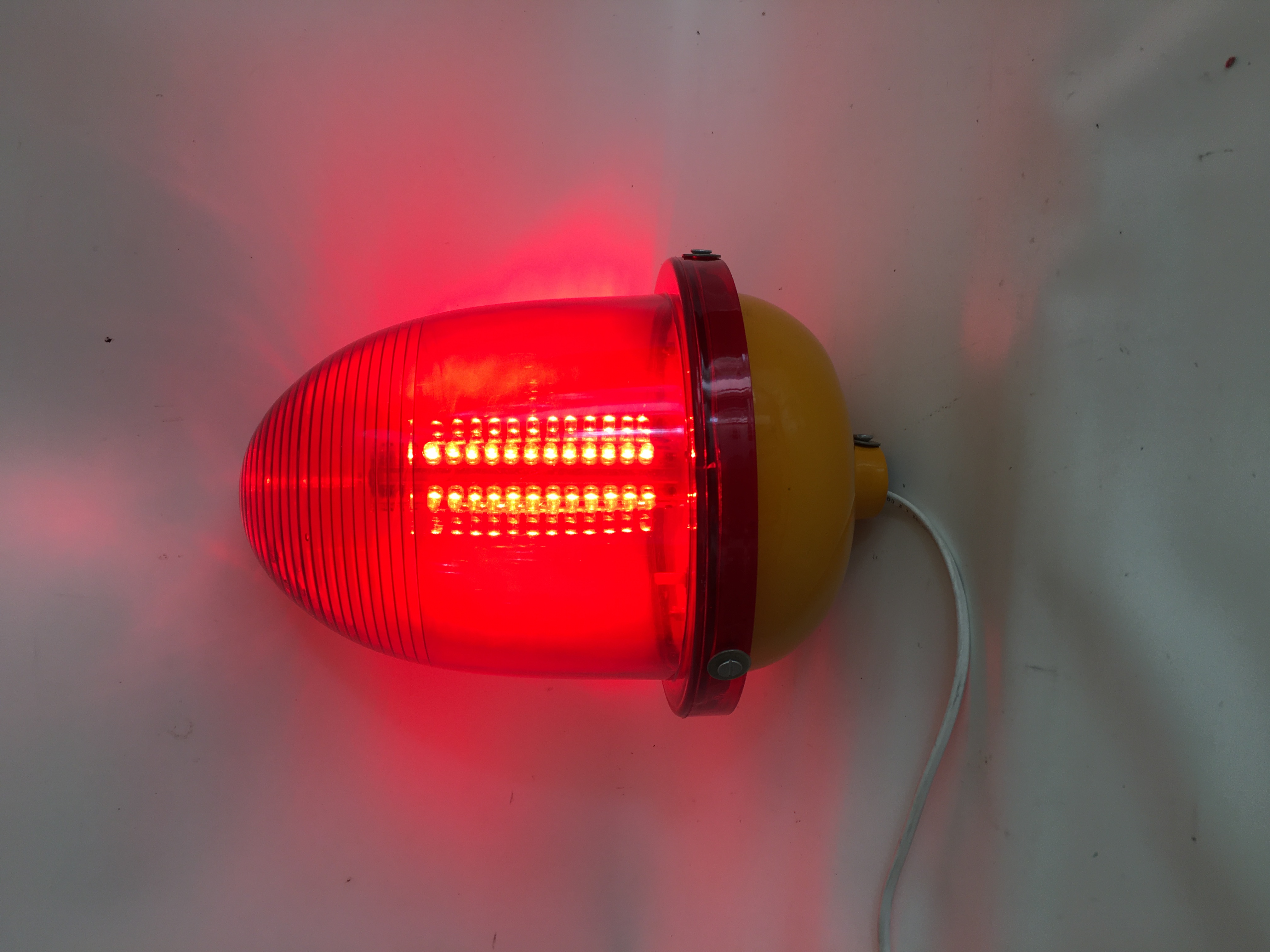

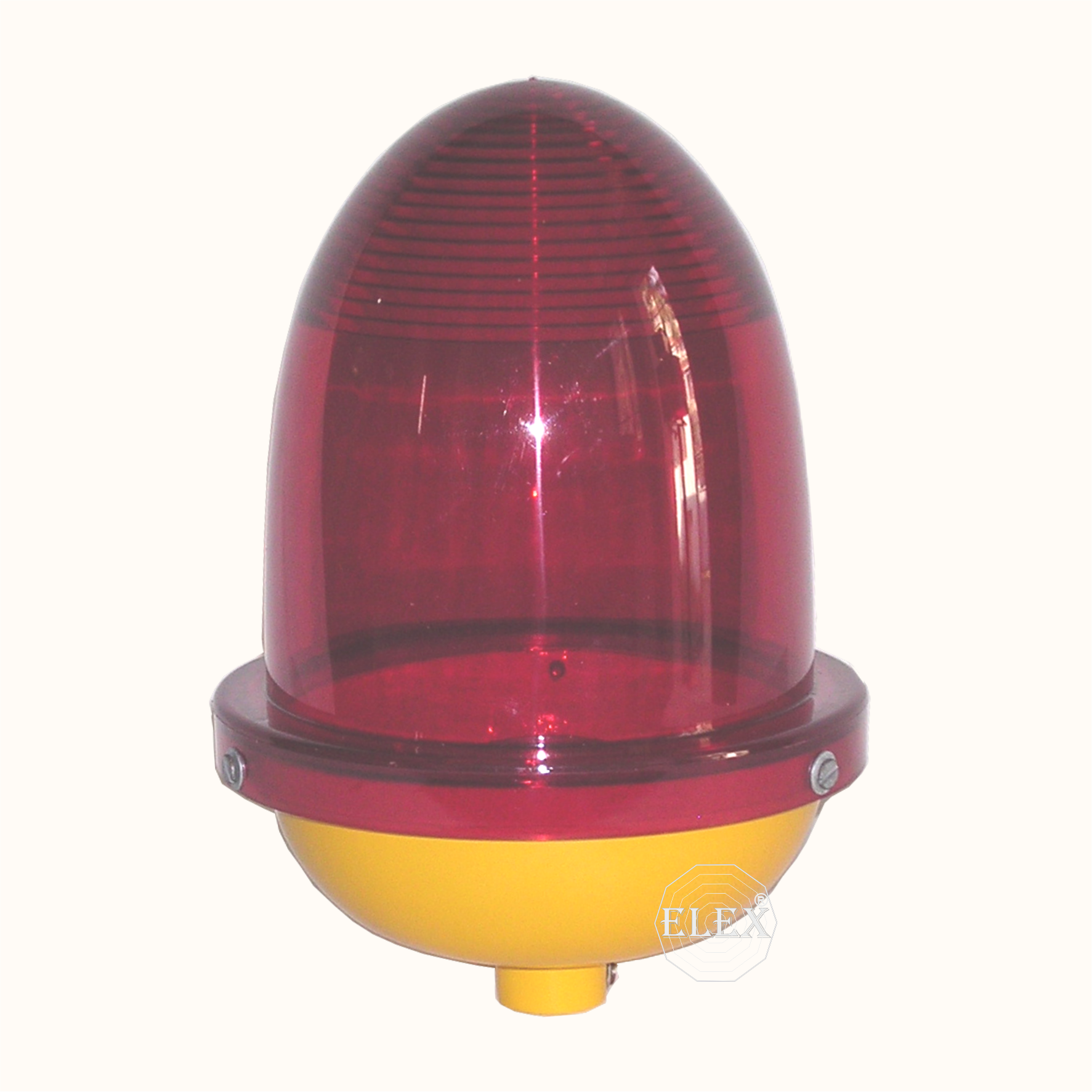

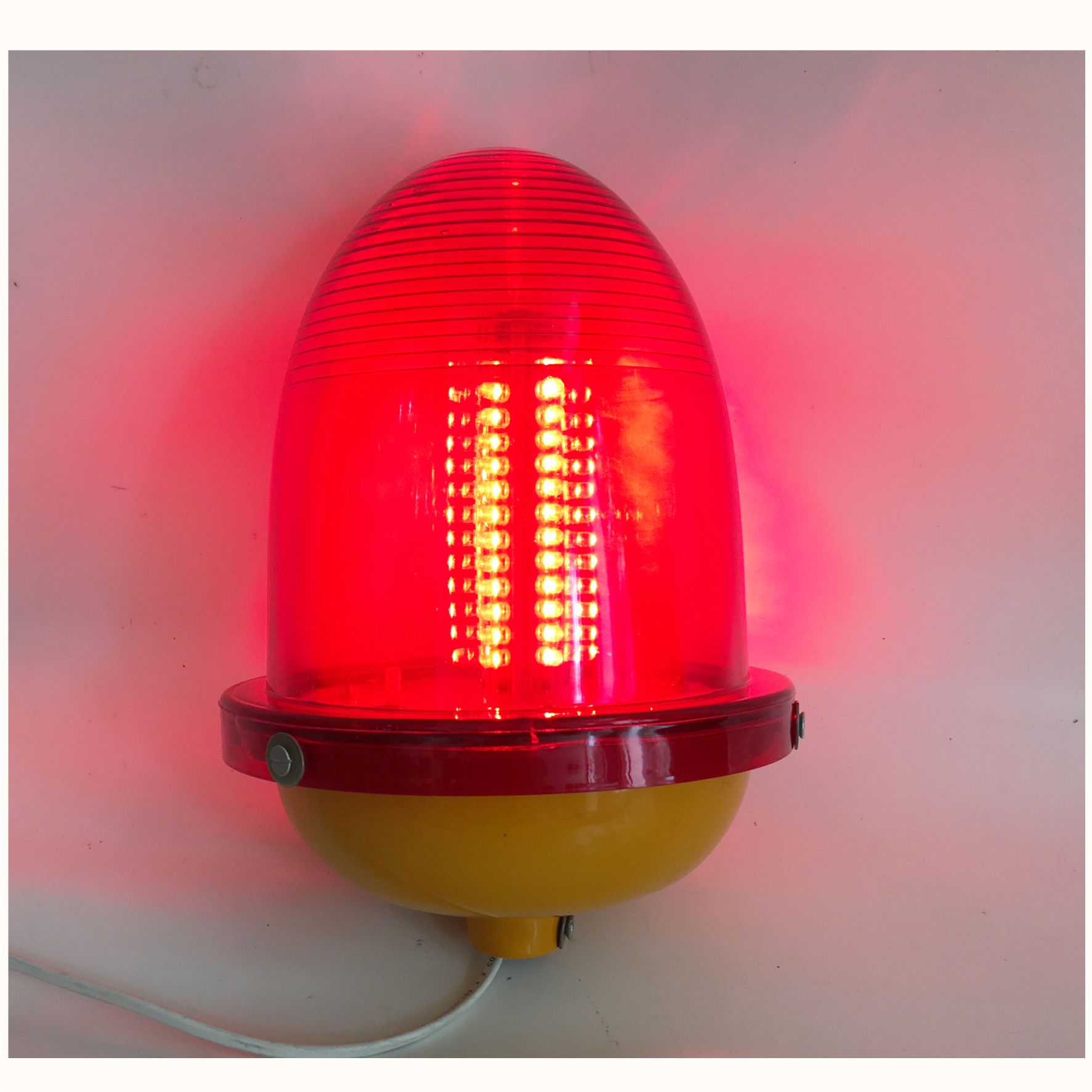

LED TOWER / AVIATION LIGHT SINGLE WITH POLY-CARBONATE DOME & ALUMINUM BASE WITH AUTOMATIC ON & OFF

ELEX offers LED TOWER LIGHT with high visibility & durability in high-rise buildings/towers/chimneys. The housing is of a cast aluminum base with a RED diffuser lens. These offer low maintenance as compared to incandescent lamps. The Tower Light uses LED Power as a light source to illuminate.

Available with Photo / Light sensor -Automatically switch ON the Tower Light at night/dusk & switch OFF at dawn. Also available with -Flashing function: The light flashes 40-60 times in a minute (Optional)

TECHNICAL SPECIFICATIONS

1. Aux. Supply :220 VAC (standard) 12/24/48V DC

2. Top Cover: Poly-carbonate RED

3. Housing : Cast aluminum base, Bright Yellow(LM 6)

4. Protection: Weather-proof IP 65

5. Gasket:Rubber

6. Light Source :LED

7. Intensity :10000 - 14000 mcd each LED

8. Angle of LED :15° narrow for far reach

9. Reliability :Different series to avoid total failure

10. LED Life :100,000 hours

11. Size : Dia-170mm Height -240mm Dome height-200mm

11. Intensity: LOW MEDIUM HIGH

12. Number of LED : 72 144 300

13. Watt : 4W 8W 16W

14. Viewing : 100 200 500 Mtr

15. Model No. : EL72AV /          EL144AV  /     EL300AV
